Project Description

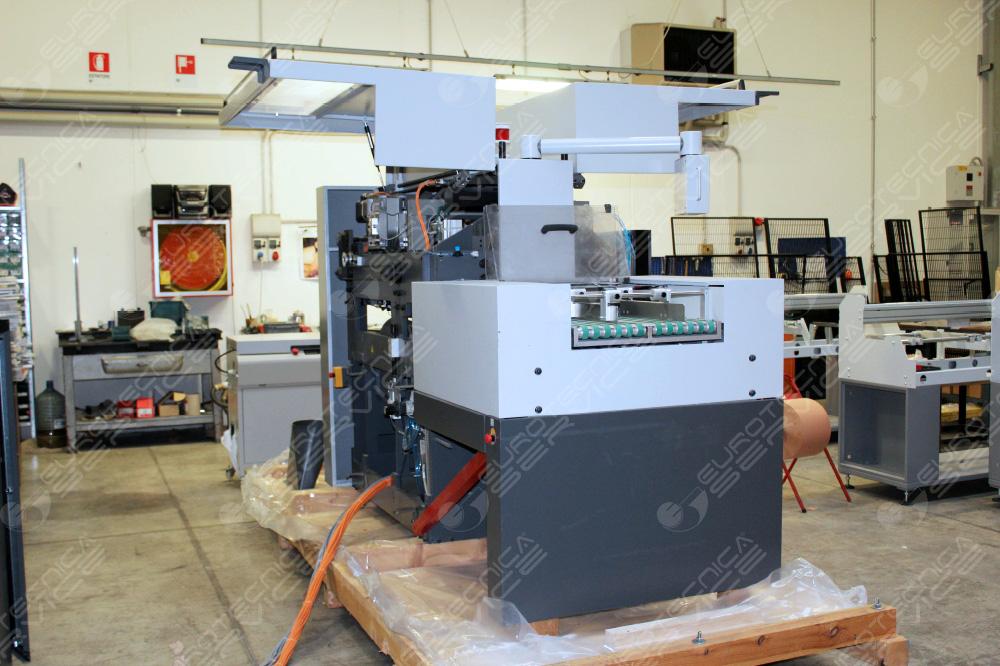

MOD : EUROTRIMMER ET1000
ANNO DI COSTRUZIONE : 2010
VOLTAGGIO A: 400V 50HZ

Technical Data Eurotrim 1000

Mechanical performance Max. 1,000 cycles/h
Formats, untrimmed: Book block width:
105 mm–345 mm (4.13 in–13.58 in)
Book block height:
110 mm–480 mm (4.33 in–18.90 in)
Formats, trimmed:
Book block width
Book block height
90 mm–330 mm (3.54 in–12.99 in)
100 mm–470 mm (3.94 in–18.50 in)
Height of material to be cut 2 mm–60 mm (0.08 in–2.36 in)
Power supply 400 V, 50 Hz, 3 phases + N + PE / 20 A / 8.0 kVA
Compressed air supply:
Working pressure
Compressed air consumption
6 bar
750 Nl / min (free of oil and water)
Dimensions
(length × width × height)
3,340 mm × 1,070 mm × 1,620 mm (131.50 in × 42.13 in × 63.78 in)
Weight  3,200 kg
